Shock(Impact) and Tilt Indicator Label products enable any personnel responsible to the quality to check whether the product has received any shock(impact) or tilt change during its distribution process from manufacturer to customer, in order take care of the product and pay attenttion to the process in advance. It also allows to make reference for any damage of the product to make necessary claim to the supplier.

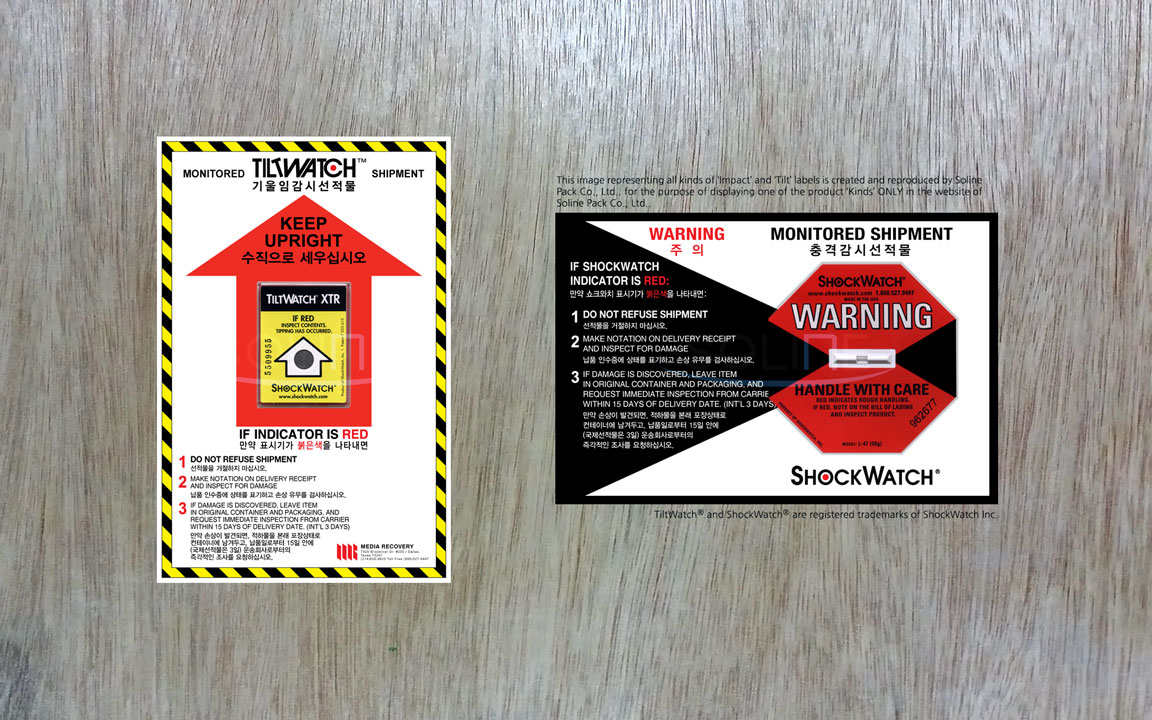

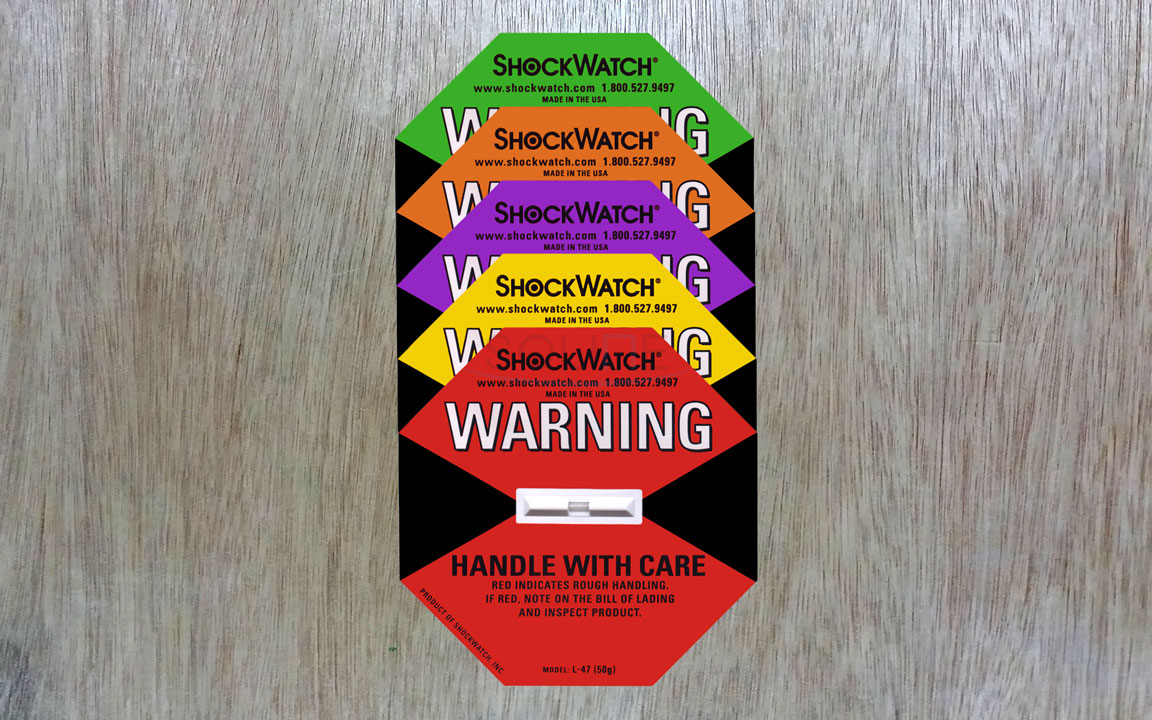

1. ShockWatch®
- ShockWatch® is an indicator label that detects any shock(impact) exceeding the maximum detection level of the label given to the product and visually indicates on its irreversible sensor tube with a change of color from white to red at the time of occurrence.

2. Impact Tube
- Impact Tube is a single sensor tube detached from ShockWatch® product that detects any shock(impact) exceeding the maximum detection level of the sensor given to the product, and visually indicates on its irreversible sensor tube with a change of color from white to red at the time of occurrence. It can directly be attached to a small size of product or a small space of any size of product where needs a distinct detection at specific spots.

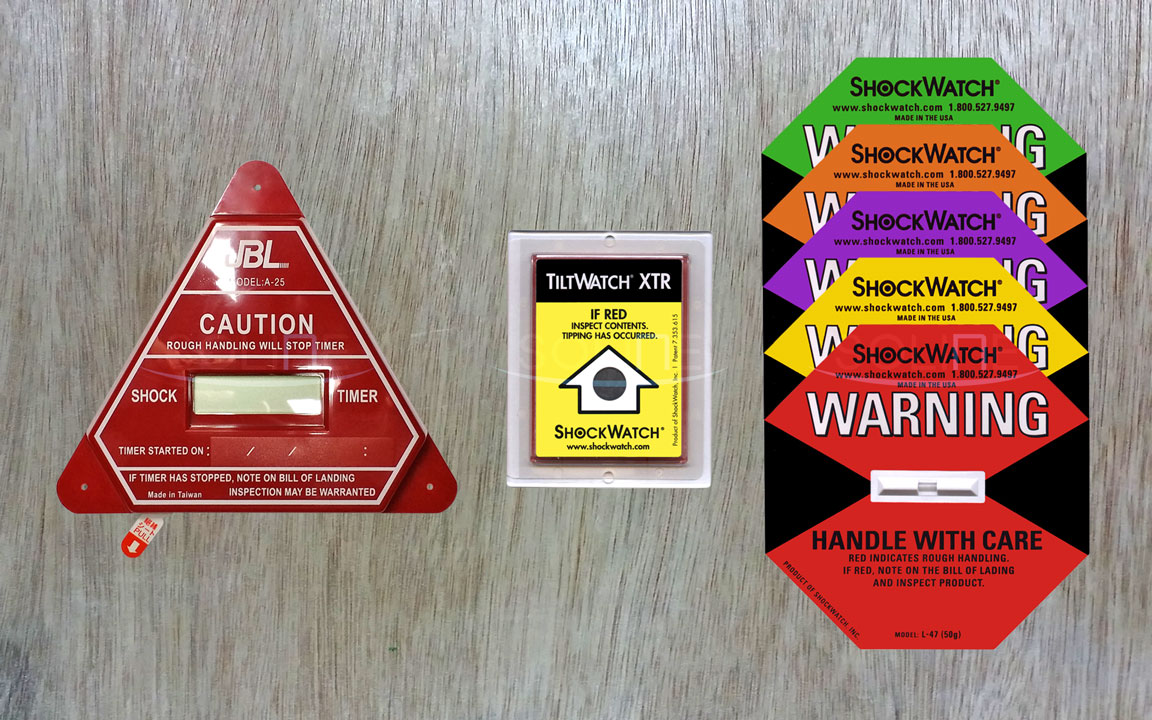

3. Shock Timer®
- Shock Timer is a digital indicator label that detects any shock(impact) exceeding the maximum detection level of the label given to a product and displays the time of its occurrence on a LCD screen as a irreversible record.

4. TiltWatch® XTR
- TiltWatch® XTR is an indicator label that detects a tilt of a product within its tilt detection angle range and visually indicates on its irreversible sensor panel with a change of color from silver/green to red at the time of occurrence.

1. ShockWatch®
- Operating Temperature: -25ºC ~ 80ºC
- Detection Color Change: White -> Red
- Detection Time: 0.5 ~ 50ms
- Guaranteed Activation: ±15%
- Shelf Life: 2 years in condition with standard temperature(20ºC) and pressure (1ATM)
- Label Size: 96.52mm × 96.52mm
- Min. QTY: 50 EA/Box
- Notice: Sensor is always activated. Avoid any impact all the time.

2. Impact Tube
- Operating Temperature: -25ºC ~ 80ºC
- Operating Humidity: 5 ~ 99%
- Detection Color Change: White -> Red
- Detection Time: 0.5 ~ 50ms
- Guaranteed Activation: ±15%
- Shelf Life: 2 years in condition with standard temperature (20ºC) and pressure (1ATM)
- Tube Size:
  10G/15G/25G/37G - Φ3.4 x 19 ± 1 mm
  50G/75G/100G - Φ2.4 x 19 ± 1 mm
- Min. QTY: 500 EA/Box
- Notice: Sensor is always activated. Avoid any impact all the time.

3. Shock Timer®
- Operating Temperature: -15ºC ~ 70ºC
- Monitor Period: 2999 Hours (125 Days)
- Maintenance Period: 4000 Hours (166 Days)
- Detection Time: 10ms
- Guaranteed Activation: ±20%
- Shelf Life: 1 year
- Device Size: 119.38mm × 104.14mm × 12.7mm
- Min. QTY: 10~50 EA/Box
- Activation: Attach device on product and pull activation strap - Notice: After activation, avoid any impact all the time.

4. TilTWatch® XTR
- Operating Angle: 80º ±5º from perpendicular
- Detection Range: Horizontal tilt on one side
- Detection Color Change: Silver(Green) > Red
- Operating Temperature: -40ºC ~ 60ºC
- Operating Humidity: 5% ~ 99%
- Shelf Life: 1 year in condition with standard temperature(20ºC) and pressure (1ATM)
- Label Size: 60.31mm × 74.27mm × 5.29mm
- Min. QTY: 100 EA/Box
- Activation: Activate by removal of adhesive tape on the back
- Notice: After activation, avoid any horizontal tilt all the time
